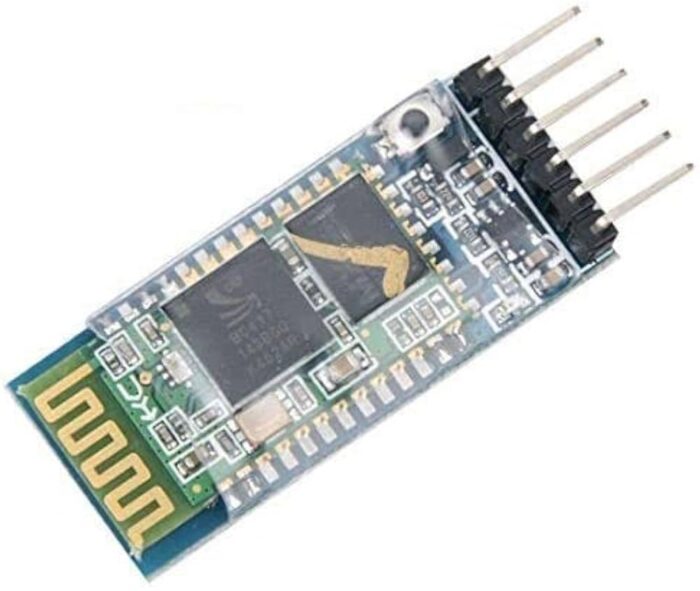

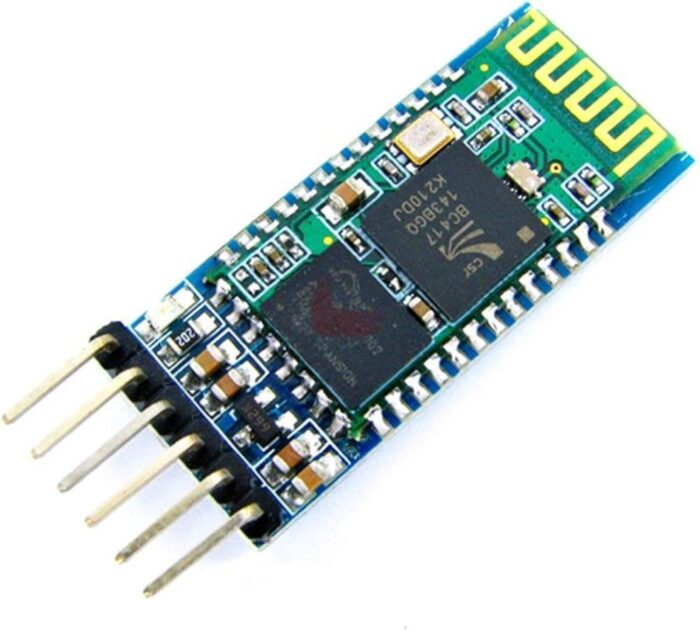

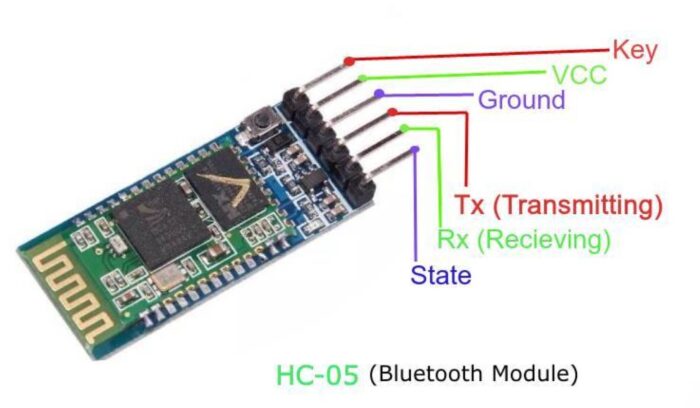

HC-05 Bluetooth Module with TTL Output

HC-05 Specifications:- Profiles: Bluetooth serial port Profile Bluetooth protocol: Bluetooth Specification v2.0 EDR Frequency: 2.4GHz ISM band Modulation: GFSK(Gaussian Frequency Shift Keying) Emission power: ≤4dBm, Class 2 Sensitivity: ≤-84dBm at 0.1% BER Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps Security: Authentication and encryption Power supply: 3.3VDC 50mA Working temperature: -20 ~ 75Centigrade Dimension: 26.9mm x 13mm x 2.2 mm HC-05 Applications:- Embedded Projects Industrial Applications Computer and portable Devices GPS receiver

Dimensions

measures approx. (external, L x W x H):

130mm x 130mm x 10mm

Disclaimer

  • All items are hand-poured, cured and finished in small batches – please expect minor imperfections due to the nature of material.
  • Actual colours and designs may vary as seen on screen.

Care Instructions

  • All items are sealed to improve resistance to water and contaminants.
  • Not dishwasher safe. Do not wash with soap.
  • Clean and wipe carefully with a damp cloth.
  • It is advised to clean off all strong contaminants as soon as possible.
