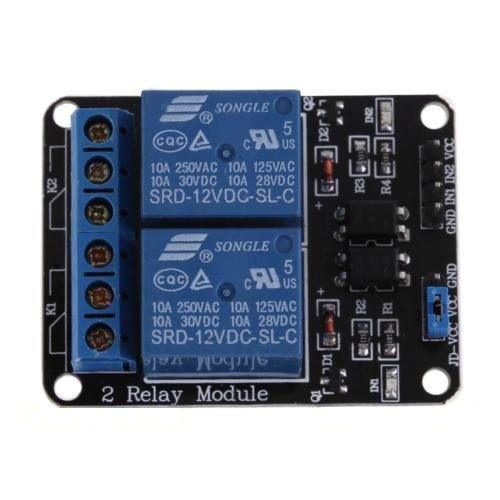

12V 2 CHANNEL RELAY MODULE

The 2 channel Relay Board can be used to turn lights, fans and other devices on/off while keeping them isolated from your microcontroller. Relay’s coil voltage is 12V, so you can use directly with any 12V regulator. (We suggest separate regulators between your Arduino and Relay board).  This Relay Board allows you to control high-power devices (up to 10 A) via the on-board relay. Control of the relay is provided via a 1 x 3 header – friendly to servo cables and convenient to connect to many development boards. 2 Channel is controlled separately. Key Features:  Control high-power devices up to 10 A with a simple high/low signal Provides isolation between the microcontroller and device being controlled Screw terminals for relay connections 3-pin servo-style header for power/signal interface LED indicator provides visual feedback Application Ideas:  Fan/lighting control 12 VDC automotive applications

Dimensions

measures approx. (external, L x W x H):

130mm x 130mm x 10mm

Disclaimer

  • All items are hand-poured, cured and finished in small batches – please expect minor imperfections due to the nature of material.
  • Actual colours and designs may vary as seen on screen.

Care Instructions

  • All items are sealed to improve resistance to water and contaminants.
  • Not dishwasher safe. Do not wash with soap.
  • Clean and wipe carefully with a damp cloth.
  • It is advised to clean off all strong contaminants as soon as possible.
