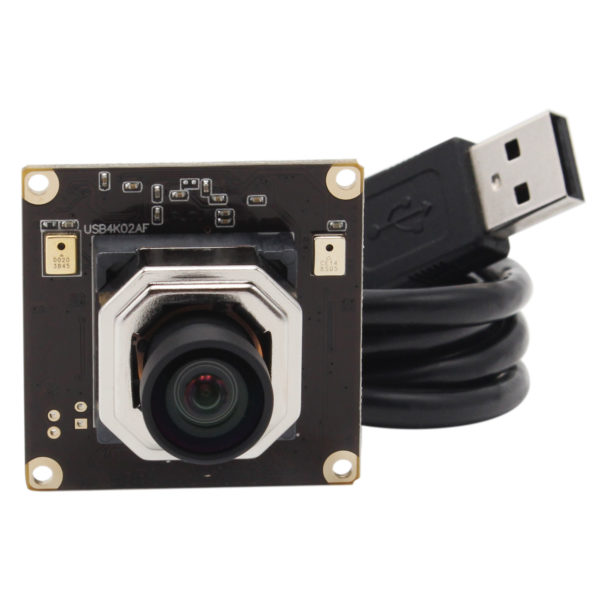

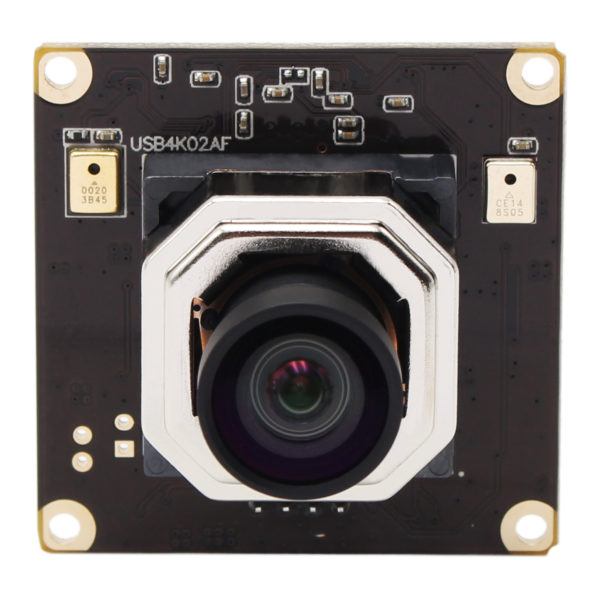

ELP 4K Autofocus USB Camera module 3840x2160 CMOS SONY IMX415 Sensor with No distortion Lens mini USB Video Webcam

Description ELP 4K Autofocus USB Camera module 3840×2160 CMOS SONY IMX415 Sensor with No distortion Lens mini USB Video Webcam( USB4K02AF-V100) Picture effect: Feature: *Super high resolution 4K 3840×2160 USB camera module *SONY IMX415 (1/2.8” ) for high quality image. * High quality no distortion lens/2.1/2.8/3.6/6/8/12/25mm lens optional . *High speed USB 2.0 interface for high resolution PC camera interface. *high pixel technology for sharp image and accurate color reproduction. * Auoto focus, with motor *low light performance – ideal for any lighting condition. *Super small outline 38*38mm and thin profile for embedded applications. *High quality lens, true and undistorted color image. *Low power consumption – ideal for portable equipment. *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android4.0 above. Specification: Model NO.: ELP-USB4K02AF-V100 Image Sensor SONY IMX415 (1/2.8” ) Max. Resolution 3840(H) *2160 (V) Sensitivity 1000mV/Lux-sec Pixel Size 1.45µmx1.45µm Compression format MJPEG  / YUY2（YUYV） Resolution & frame 3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG 2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×960@30fps MJPE 1280×720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG /  320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2 2048×1536@ 3fps YUY2 /1600×1200@ 5fps YUY2 1920×1080@ 5fps YUY2/1280×960@5fps YUY2 1280×720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2 /  320×240@ 30fps YUY2 Center definition 1000LW/PH (Center) S/N Ratio 30dB Sensitivity 0.65V/lux-sec@550nm Minimum illumination 0.2lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed AEC Support AEB Support AGC Support Auto Focus Support Adjustable parameters Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure Lens Parameter   Size:  1/2.5, FOV: 94.5Degree IR filter: 650±10nm Power supply& connector USB BUS POWER  4P-2.0mm socket Power Voltage DC5V Power Current 200mA Board Size 38mm × 38mm Storage Temperature -20°C to 70°C Work Temperature 0°C to 60°C USB Cable 1M(2M/3M/5M optional) Operating System support Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Dimensions

measures approx. (external, L x W x H):

130mm x 130mm x 10mm
