ELP 5MP 50fps Global Shutter USB Camera Module for Computer UVC Mini USB2.0 Lightburn Camera for Laser Engraver High Speed 60fps 1080P PC Cam Wide Angle 85° No Distortion WebCamera for Live Streaming

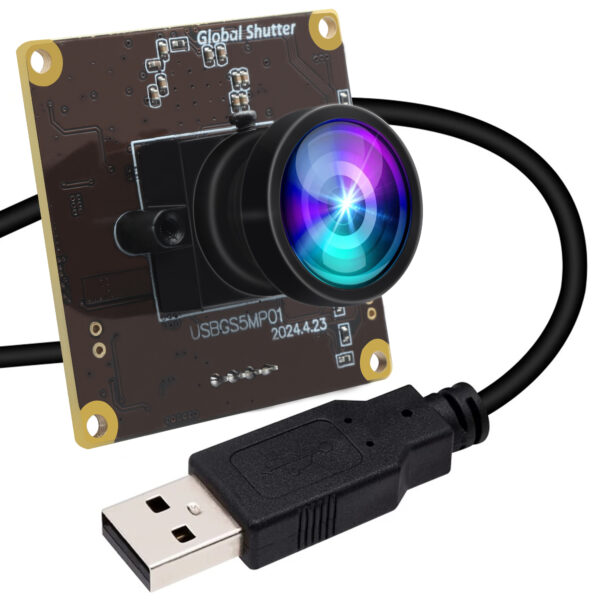

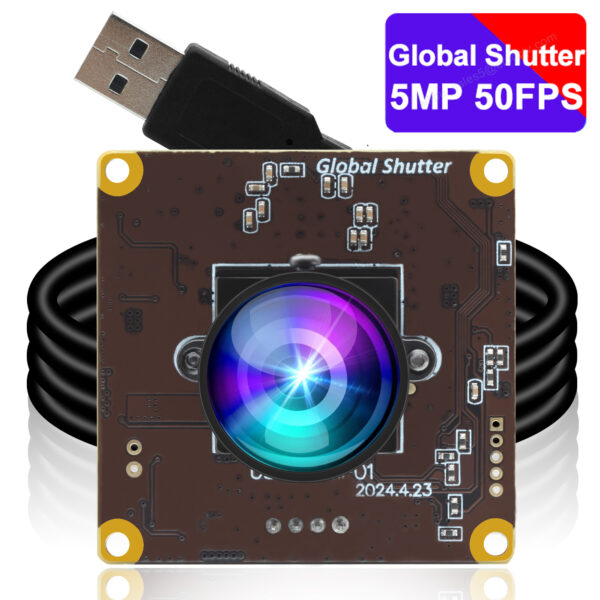

Description ELP High Speed Global Shutter USB Camera Module 5MP 50fps 1080P 60fps Mini UVC Webcam Board with 85 Degree No Distortion Lens ​ Package Includes: 1) 1pcs 5MP Global Shutter USB Camera with M12 mount no/low distortin lens 2) 1pcs 1m usb cable (2/3/5m usb cable optional) Wide Angle Distortion Free Lens USB PC Camera , Horizontal view angle 69/85/86/98/115/125 degree No distortion Lens Optional  Model Number   Lens   Resolution  HFOV VFOV DFOV ELP-USBGS5MP01-V100 No/Low Distortion     2592×1944 85.00 68.00 97.00   ELP-USBGS5MP01-V83      No/Low Distortion       2592×1944               86.00            69.00             98.00 ELP-USBGS5MP01-LC1100     No/Low Distortion     2592×1944 69.00 53.00 80.00 ELP-USBGS5MP01-H100     No/Low Distortion     2592×1944 98.00 82.00           115.00 ELP-USBGS5MP01-H110     No/Low Distortion     2592×1944 115.00 93.00 125.00 ELP-USBGS5MP01-H120     No/Low Distortion     2592×1944 125.00 105.00 138.00 ​ELP 5MP USB Global Shutter Camera       This ELP-USBGS5MP01 Series Camera is ELP New 5MP Global Shutter Sensor & High Frame Rate 50FPS USB 2.0 camera. Highly recommended for Accurate and Fast Capture of Moving Scenes at 50 fps in 5MP Resolution. Its OX05B10 Color CMOS Global Shutter Sensor Helps to Minimize Frame-to-Frame Distortion and Reduce Motion Blur While Capturing Fast-Moving Objects to Produce Smoother Images with Greater Scene details. Wide Applications for Shooting High Speed Moving Objects, Like Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Bar code Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems etc. Why Global Shutter Cameras?         A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion. Difference between Rolling Shutter and Global Shutter 1.Sensor: With industrial grade high quality OX05B10 Sensor; 2.Resolution: Full HD 2592*1944 High Resolution 5MP Global Shutter USB Camera; 3.High Speed: Mjpeg 50FPS@2591*1944, Mjpeg 60FPS@2592*1440,Mjpeg 60FPS@1920*1080 etc.; 4.Global Shutter: Makes All pixels in the image exposed simultaneously, producing smoothing images without distortion or lag; 5.No Distortion Lens: Wide angle 85 degree No distortion lens – 68/85/98/113/125 Degree No distortion Lens Optional; 6.Mini Compact PCB Board Size: Suitable for Many Embedded Application; 7.High Quality Image: Super Image reality, real color reproduction, without interpolation; 8.UVC Support: Free Driver , Plug and Play, easily used on different systems; 9.Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…; 10.OTG Support: can be used on Android smartphone, recommended app “USB Camera”. 11. Adjustable Features: many parameters adjustable, allows you customize the camera’s performance according to your needs. 12.Wide Application: Well used for High Speed- sports photography, LPR Systems, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection…. and so on. 5MP Full HD Resolution USB camera module, Max Resolution 2592X1944 for Sharp Clear image & Video 50FPS High Speed Ultra Smooth Streaming camera USB, Can reach High Frame Rates MJPEG 50fps@2592X1944, MJPEG 60fps@2592X1440 2560X1440, 1920X1080, Good Sports Analysis camera 1/2.5″ Big OmniVision OX05B10 Global Shutter Sensor Webcam, Exposing entire sensor at one time, shooting high speed moving objects without Distortion or Lag Wide Angle Distortion Free Lens USB PC Camera , HFOV about 85degree, Other 68/85/98/113/125 degree No distortion Lens Optional Web Cam with 38*38MM Mini Compact PCB Board Size Suitable for many embedded application, like Eye Tracking device, Golf simulator, Car video recorder, Scanner etc. ​Adjustable Features – many parameters adjustable, allows you customize the camera’s performance according to your needs. Ease of Use: – Free driver,simply connect to a USB port then Plug & Play immediately. No need additional hardware, driver or complex setup processes – seamlessly integrate with operating systems including Android, Windows, Linux. Mac OS etc. Easy Integration, OTG Support, Work with all kind of PC, Laptop, Desktop, Industrial PC, Android Development, Mini PC like Raspberry PI, Banana PI, Strawberry PI, Orange PI, Jetson Nano etc. FOR RASPBERRY PI: It can work with already preinstalled camera software instead of builtin camera. Support Android development board,Raspberry Pi development board,Jetson Nano,etc. FOR PC: Support windows,linux,mac,Android,raspberry Pi. Very easy to use,UVC compliant,free driver,just plug in and go. High Compatibility – compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like Skype, OBS, Zoom, GoTo Meeting, Facebook LIVE, and YouTube Live streaming services etc. Note please: This link is for the camera with V100 no distortion lens (HFOV 85 degree). If you need other alternative lens, you can leave message when placing the order, or welcome to contact us and order directly from us. Model ELP-USBGS5MP01-V100     (85degree) Optional Models (with Low distortion Lens) ELP-USBGS5MP01-LC1100 (69degree) ELP-USBGS5MP01-V83       (86degree) ​ ELP-USBGS5MP01-H100     (98degree) ​ ELP-USBGS5MP01-H110      (113degree) ​ ELP-USBGS5MP01-H120     (125 degree) Sensor 1/2.5”OmniVision OX05B10   (Global Shutter) Max Resolution(Default) 2592 (H) *1944 (V) Sensor Size 1/2.5 inch (4:3) Image Array Area 5737μmx4312μm Pixel Size 2.2μmx 2.2μm Compression Format MJPEG / YUV2 (YUYV) Resolution & Frame Rate 2592×1944 @ 50fps MJPEG/ 2592×1440 @ 60fps MJPEG             2560×1440 @ 60fps MJPEG/ 2304×1296 @ 60fps MJPEG 2048×1536 @ 50fps MJPEG/ 1920×1080 @ 60fps MJPEG            1600×1200 @ 50fps MJPEG/1600×900 @ 60fps MJPEG 1280×960 @ 50fps MJPEG/1280×720 @ 60fps MJPEG                 1024×768 @ 50fps MJPEG/ 1024×576 @ 60fps MJPEG 960×720 @ 50fps MJPEG/ 960×540 @ 60fps MJPEG                   800×600@ 50fps MJPEG/800×450 @ 60fps MJPEG 848×480 @ 60fps MJPEG/640×480 @ 50fps MJPEG                     640×360 @ 60fps MJPEG/ Surface Mount Technology SMT Focus Fixed Focus Central Definition 1000LW/PH (Center) S/N Ratio 38dB Dynamic Range 72dB Sensitivity 1.4V/lux-sec@550nm Min Illumination 0.1Lux Shutter Global Shutter Interface USB2.0 High Speed AEC/AWB/AGC Support Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure Lens Parameters No Distortion Lens, HFOV: about 85 degree, Optional 2.8mm/2.9mm/3.6mm/6mm/8mm/12mm/16mm/25mm… No Distortion Lens (FOV 65~130 degree optional) Fish-eye lens 150 degree /180 degree etc. LED board power connector Support 2P-2.0mm socket Power Supply USB BUS POWER 4P-2.0mm socket Operating Voltage DC 5V Working Current 180mA- 230mA Dimension 38mmx 38mm Working Temperature 0°C to 60°C Storage Temperature -20°C to 80°C USB Cable 1M (2M/3M/5M … Optional ) Operating System Request WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MACOS X 10.4.8 or later, Android 4.0 or above with UVC Wide Applications for Shooting High Speed Moving Objects: Sports Analysis like golf swings, tennis strokes, or soccer kicks, Gesture Recognition Motion Analysis and Biomechanics Industrial Inspection for quality control and inspection, Factory Automation, Conveyor Monitoring Robotics and Automation, robot navigation, Robotic Vision, object detection, motion tracking , Autonomous Mobile Robots (AMR), Drones Scientific Research, such as chemical reactions, fluid dynamics, combustion processes, or material testing Entertainment and Media Production like film production, special effects, and virtual reality applications Security & Traffic, like Automatic Number Plate Recognition (ANPR), Traffic Monitoring Systems
